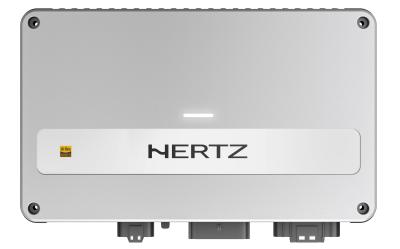

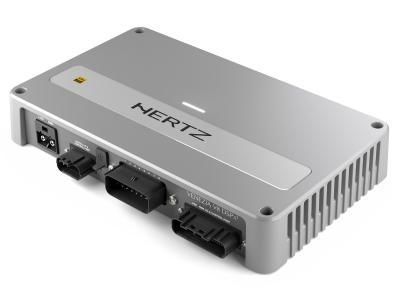

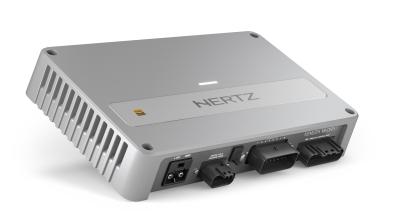

Hertz 8 Channel Marine Amplifier With SP8x160W - VENEZIA V8 DSP 24V

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Krazy Kiley's offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

The VENEZIA V8 DSPx² 24V represents the most advanced expression of Hertz Marine audio engineering for vessels equipped with 24-volt electrical systems, designed to act as the intelligent heart of high-end and multi-zone onboard sound architectures. Combining exceptional power with advanced digital signal processing, it delivers precise control, immersive sound, and long-term reliability in real marine conditions. The integrated dual-core DSP and EVOCA® proprietary technology work together to optimize loudspeaker behavior in real time, enhancing dynamics, clarity, and listening comfort while protecting system components over time. Thanks to native A2B digital networking, VENEZIA V8 DSPx² 24V enables scalable system architectures with reduced wiring complexity, making it ideal for luxury yachts, OEM applications, and sophisticated installations where performance, efficiency, and integration matter. Certified for Hi-Res Audio and engineered with marine-grade materials, it ensures a refined, high-fidelity listening experience that remains consistent season after season, even in open-air environments.

Technologies

EVOCA is Hertz’s proprietary sound optimization technology that enhances loudspeaker behavior in real time. By modeling speaker dynamics, it improves control, clarity, and low-frequency performance while reducing distortion and mechanical stress, delivering a more immersive and reliable listening experience in marine environments.



Hi-Res

High-resolution processing at 24 bit / 96 kHz with an extended 10–42 kHz bandwidth preserves detail, dynamics, and spatial accuracy, delivering a refined and natural listening experience in marine environments.



ADC

Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality! High-powered channels with bridging capability deliver the output levels needed in the marine environment.



SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.



bit Wave is the advanced Hertz software for configuring and tuning marine DSP systems. It offers intuitive control over signal routing and sound optimization, simplifying complex multi-zone setups while ensuring consistent, high-quality performance across every listening area.



A2B digital communication enables multiple units to be connected through a single cable, simplifying installation while maintaining full signal synchronization. Designed for luxury yachts and advanced multi-zone systems, it ensures clean, reliable performance with minimal wiring complexity.



CORROSION RESISTANT

Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.



WATER JET TESTED

This Hertz Marine amplifier is IPX2 certified when installed vertically with connections facing downward.


TECHNICAL SPECS
Channels8 - 4
Total Power2000 W
Amp classD-CLASS
General Specifications
Operating power supply voltage20 ÷ 33 VDC / 100A external fuse
Power supply consumption @ 14.4v50 (A)
Idling current1.4 (mA)
Standby current draw1.70 (mA)
Remote IN voltage8 ÷ 33 VDC (1 mA)
Remote OUT voltage18 ÷ 33 VDC (150 mA)
Efficiency @ rated power (RMS) @ 14.4 VDC, 1% THD, 4Ohm, All Channels88% (4 ohms rated power)
Audio Specifications
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power<0.04%
Damping factor @ 1 kHz, 4Ω, 2 VRMS125
Bandwidth @ -1.5 dB10 - 42k Hz
S/N ratio (A weighted @ 1 V Input) Master Input98 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input106 dBA
Input sensitivity Pre-In0.6 ÷ 6 Vrms (11 kΩ Impedance)
Analog Pre-Out voltage6 Vrms
Minimum load impedance2 ohms (STEREO) / 4ohms (BRIDGE)
INPUT STAGE
Pre-In CH12
Coaxial S/PDIF Digital INMax 96 kHz / 24 bit
A2B DIGITAL INUp to 16 DSP Channels
Control Wires4x Customizable control wires (+12V trigger)
OUTPUT STAGE
Amplified Speaker Out8
DSP Analog Pre-Out6
A2B DIGITAL OUTUp to 16 DSP Channels
DIGITAL SIGNAL PROCESSOR
DSP units2 x Analog Devices ADAU1467
Filter typeFull / High-Pass / Low-Pass / Band-Pass
Filter model and slopeLinkwitz-Riley @ 12/24/36/48 dB/Oct. Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. QLP @ 6 dB/Oct.
Crossover frequency20 Hz ÷ 20 kHz
Phase control0° / 180°, All-Pass filters
Output equalizerParametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Input equalizer12 Biquad + Delay
Time alignment distance0 ÷ 510 cm / 0 ÷ 200.8 inches
Time alignment delay0 ÷ 15 ms
Time alignment step0.01 ms
OUTPUT POWER (RMS) @14.4 VDC, 1% THD
8Ch @ 4Ω160W x 8
8Ch @ 2Ω250W x 8
4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω500W x 4
