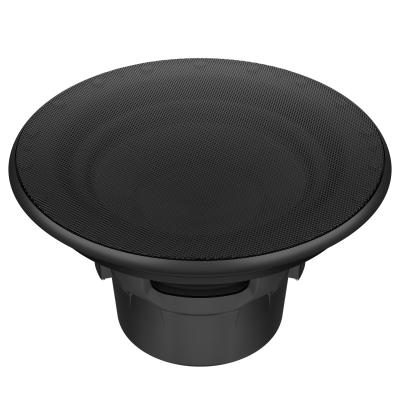

Hertz 10" Single Voice Coil Marine Subwoofer - PORTOFINO100S4C
The PORTOFINO 100 S4C delivers powerful, refined bass designed to complement the elegance of luxury yachts, now in a sophisticated black finish. Its 10-inch flush-mount design ensures seamless integration into contemporary marine interiors, producing deep, controlled low frequencies that enrich every listening experience at sea. Featuring a 4 Ohm configuration for optimal system matching and flexibility, the PORTOFINO 100 S4C is crafted with premium marine-grade materials to withstand UV rays, salt, and moisture, ensuring long-lasting performance in harsh marine environments. The fine mesh magnetic grille offers a sleek, ultra-low-profile appearance, blending perfectly into dark or contrasting yacht architectures. For those who demand both uncompromising sound and bold, refined aesthetics, the PORTOFINO 100 S4C sets a new standard in luxury marine audio.
Technologies

IP 65 CERTIFICATION

UV RESISTANT
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products are designed to face long time exposition to UV radiations while cruising on the open sea.

WATER JET TESTED
The protection grade IP65 for speakers define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

SALT FOG TESTED
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
| TECHNICAL SPECS | |
|---|---|
| Size mm (in.) | 250 (10) |
| Power Handling - Continuous W | 250 |
| Power Handling - Peak W | 500 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 174 (6.85) |
| Voice Coil Type | single |
| No Filter Component | SUBWOOFER |
| Voice Coil Ø | 50 (2) |
| Magnet size D x d x h mm (in.) | 140 x 60 x 30 (5.51 x 2.36 x 1.18) |
| Weight of one component kg (lb.) | 5,1 (11.24) |
| Magnet | High density flux ferrite |
| Cone | Polypropylene with UV inhibitors |
| Xmech mm (in.) | 16.30 (0.64) |
| Electro-acoustic Specs | |
| D mm | 210 |
| Xmax mm | 12.30 |
| Re Ohm | 2.1 |
| Fs Hz | 43 |
| Le mH | 0.46 |
| Vas I | 30.46 |
| Mms g | 75.60 |
| Cms mm/N | 0.18 |
| BL T*m | 8.30 |
| Qts | 0.60 |
| Qes | 0.63 |
| Qms | 12.30 |
| Spl dB | 88.5 |
